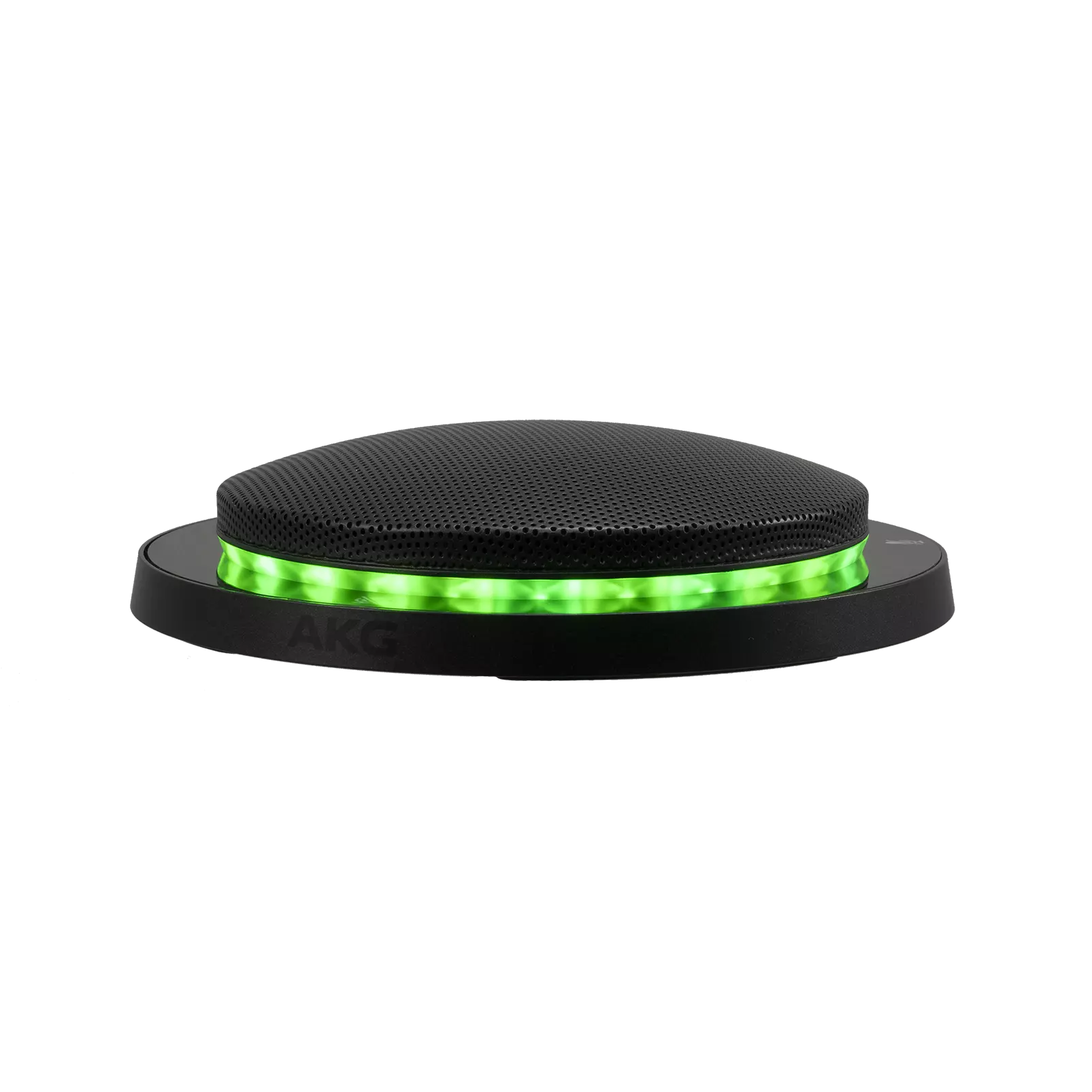

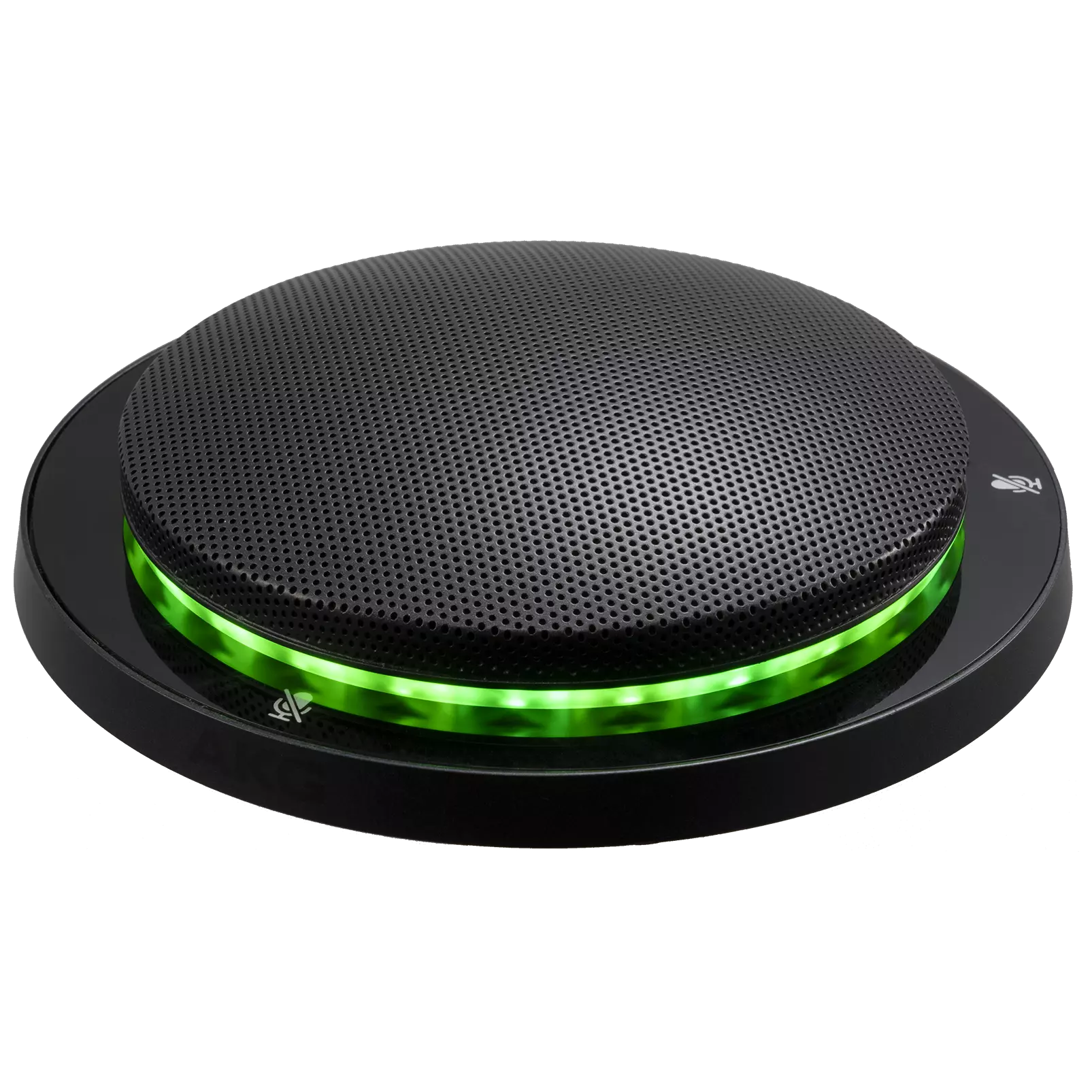

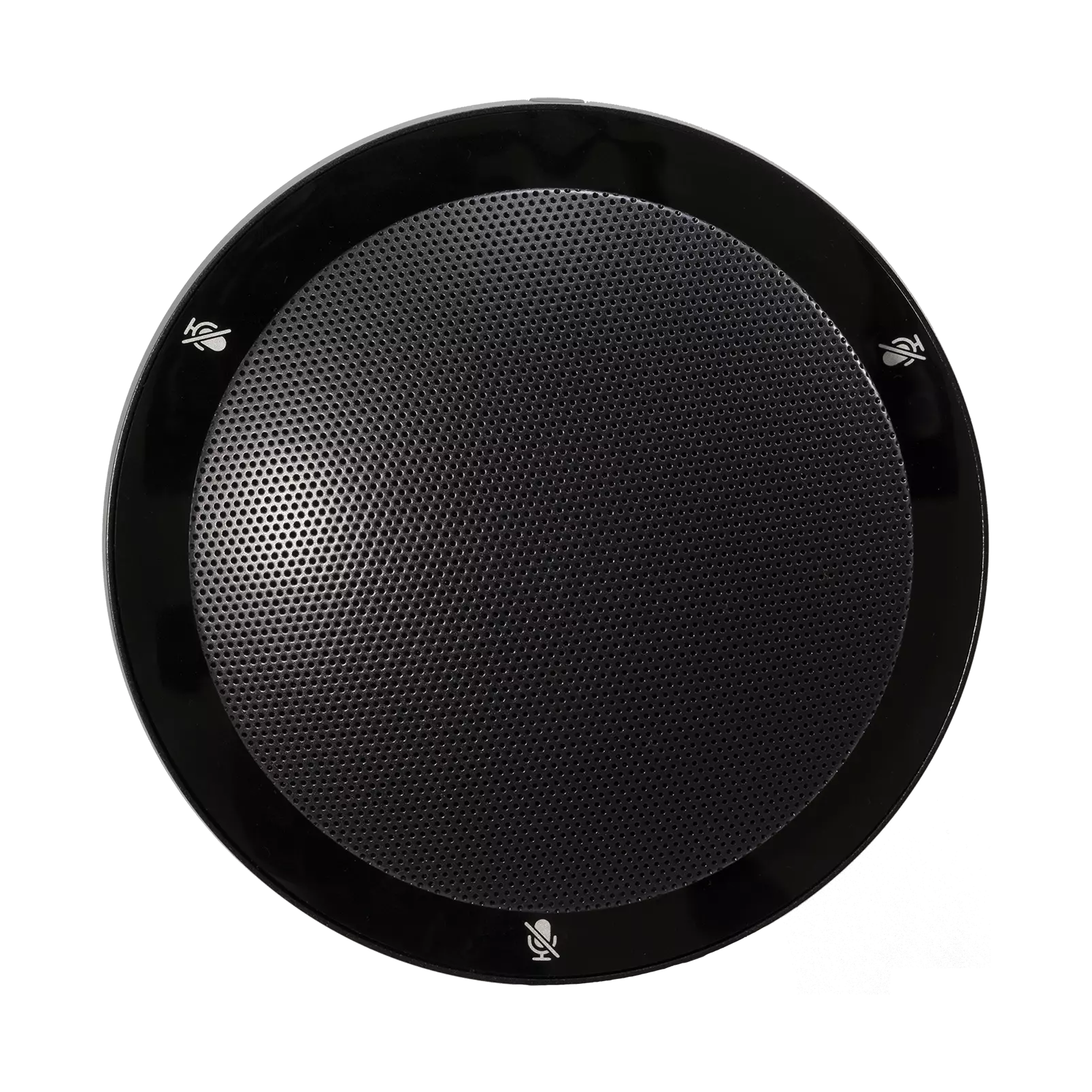

AKG CBL301 Triple element, professional low-profile boundary layer microphone

Mã sản phẩm: CBL301
Hàng trong kho: Còn hàng

The CBL301 is easy to install with intuitive user controls. Leveraging AKG’s vast portfolio of innovation, the new CBL Series by AKG is a family of low-profile boundary layer microphones, available in multiple form factors and mic coverage patterns to accommodate critical applications including conference rooms and meeting spaces. Featuring intuitive user controls for talk/mute, elegant design aesthetics with LEDs, and screw terminals for mics and I/O, the CBL Series is easy to install, easy to use, easy on the eyes and makes meetings sound great.

Giá bán: Liên hệ

The CBL301 is easy to install with intuitive user controls. Leveraging AKG’s vast portfolio of innovation, the new CBL Series by AKG is a family of low-profile boundary layer microphones, available in multiple form factors and mic coverage patterns to accommodate critical applications including conference rooms and meeting spaces. Featuring intuitive user controls for talk/mute, elegant design aesthetics with LEDs, and screw terminals for mics and I/O, the CBL Series is easy to install, easy to use, easy on the eyes and makes meetings sound great.

General Specifications

DescriptionAKG CBL Series Professional Boundary Layer Microphones, Triple-Element
ModelCBL301-B
Polar PatternCardioid
Minimum Current400 µA
Maximum Current600 µA
Typical Current500 µA
Maximum SPL120 dB
LEDRGB ring LED to indicate mic status

Dimensions

Height28.4mm (1.1”)
Width128.5mm (5.1”)

Design

FinishBlack

Powering Input

Input Max Voltage24V (+10%)
Input Min Voltage3.3V (-10%)
Input Resistance100 kΩ

Audio Output

Output Voltage3.3V (±10%)
Output Max Current500 µA (±10%)

Powering Interface

Min Supply Voltage24V -10% (phantom power)
Max Supply Voltage48V -10% (phantom power)
Output ImpedanceMaximum 200 Ω

Application

ConferencingYes

Device

Boundary Layer MicrophoneYes

The CBL301 is easy to install with intuitive user controls. Leveraging AKG’s vast portfolio of innovation, the new CBL Series by AKG is a family of low-profile boundary layer microphones, available in multiple form factors and mic coverage patterns to accommodate critical applications including conference rooms and meeting spaces. Featuring intuitive user controls for talk/mute, elegant design aesthetics with LEDs, and screw terminals for mics and I/O, the CBL Series is easy to install, easy to use, easy on the eyes and makes meetings sound great.

General Specifications

DescriptionAKG CBL Series Professional Boundary Layer Microphones, Triple-Element
ModelCBL301-B
Polar PatternCardioid
Minimum Current400 µA
Maximum Current600 µA
Typical Current500 µA
Maximum SPL120 dB
LEDRGB ring LED to indicate mic status

Dimensions

Height28.4mm (1.1”)
Width128.5mm (5.1”)

Design

FinishBlack

Powering Input

Input Max Voltage24V (+10%)
Input Min Voltage3.3V (-10%)
Input Resistance100 kΩ

Audio Output

Output Voltage3.3V (±10%)
Output Max Current500 µA (±10%)

Powering Interface

Min Supply Voltage24V -10% (phantom power)
Max Supply Voltage48V -10% (phantom power)
Output ImpedanceMaximum 200 Ω

Application

ConferencingYes

Device

Boundary Layer MicrophoneYes
