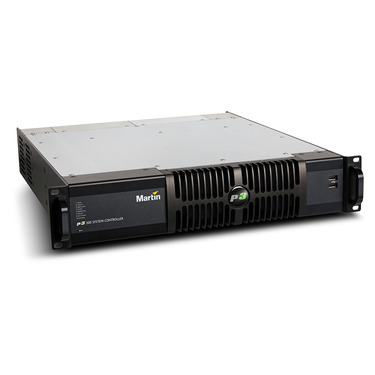

(MARTIN) P3-300 System Controller HIGH CAPACITY P3 LED VIDEO CONTROLLER

Mã sản phẩm: P3-300
Hàng trong kho: Còn hàng

Hàng trong kho: Còn hàng

The P3-300 System Controller combines the award-winning and intuitive P3 workflow with a brand new high-performance video processing engine. No matter how you mix Martin Creative LED fixtures and P3-enabled MAC moving heads, the workflow remains simple and integrated. The P3-300 is equipped with a DVI input, two SDI inputs (up to 3G), DMX input, Art-Net input and sACN input. The output capacity of 2.080.000 pixels allows even more products to be driven from a single controller

Powerful and ergonomic LED Video Controller
Compatible with all Martin Creative LED products and P3-enabled MAC moving heads
Integration with lighting controls (DMX, Art-Net, sACN) and automation systems
Drive connected fixtures with video input, DMX controls or a mix of both

Giá bán: Liên hệ

Hotline
091.9911.388

Đặt hàng

FEATURES

Drives up to 2.080.000 pixels
Built-in scaler and mapper
DVI-D input up to 1920x1080
2x 3G-SDI input up to 1920x1080
Analog video input up to 1920x1080
Dedicated bi-level and tri-level sync input for genlock
Built-in GUI (Graphical User Interface) including easy setup wizards
Real time visualization of the video mapping within the GUI (Graphical User interface)
Most user-friendly LED Video processor on the market
Compatible with all Martin Creative LED products and P3-enabled MAC moving heads
Integration with lighting controls (DMX, Art-Net & sACN) and automation systems
All connected products report status and problems back to the controller for easy monitoring and maintenance
Showfiles compatible with all products within the P3 System Controller family (including the P3-PC offline editor)
Connected fixtures can cross-fade or toggle in real-time between video-mapping and DMX (pixel-mapping) control

SPECIFICATIONS

PHYSICALWidth: 482 mm (19.0 in.)Height: 90 mm (3.5 in.) rackmount 2UDepth: 508 mm (20.0 in.)Weight: 9.0 kg (19.8 lbs.)

CONTROL/USER INTERFACEUser interface : SXGA (1280 x 1024) or better monitor (VGA, DVI, HDMI or DP), USB keyboard, USB mouseDevice status: Status indicator LEDs

DVI VIDEO INPUT
Supports all resolutions up to 1920x1080
Supports both RGB and YCbCr, progressive scan only

COMPONENT VIDEO INPUT
Via DVI-I breakout cable (not included)
Supports all resolutions up to 1920x1080
Supports progressive and interlaced scan
10-bit color sampling
Supports composite NTSC/PAL/Secam, S-Video (Y/C) and component YPbPr w/Sync-on-G (Y)
Supports tri-level sync

SDI VIDEO INPUT
2 x SD-SDI 525/60 (NTSC) or 625/50 (PAL) per SMPTE 259M
2 x HD-SDI 720p per SMPTE 296M or 1080i per SMPTE 292M
1 x dual-link HD-SDI per SMPTE 372M
2 x 3G-SDI per SMPTE 424M (compatible with level A and level B sync)

GENLOCK INPUTSupports bi-level and tri-level sync

VIDEO PROCESSINGController pixel processing capacity: 2,080,000 pixels (expandable by adding P3-300s)*Controller fixture capacity: 2000 fixtures (expandable by adding P3-300s)*Maximum workspace area: 2,073,600 pixelsMaximum active capture area: 2,073,600 pixelsSystem processing depth: 16 bits per color (48 bits per pixel)System latency, DVI: 2 framesSystem latency, SDI/component progressive: 2 framesSystem latency, SDI/component interlaced: 3 frames
Latency between first and last fixture: NoneScaling (global and mixed pixel pitch)De-interlacingGamma curve selection and adjustmentControl of brightness, contrast and low lightReal-time content remappingReal-time color temperature and color space controlReal-time preview of video input and mapping canvas*See also P3 System Controller Capacity Info Note on Support & Downloads page

DMX CONTROLS

One line of DMX input*Up to 64 universes of Art-Net and/or sACN input*Control of intensity and colorsControl of color temperatureMerge video input with DMX controls towards fixturesCross-fade or toggle between video and DMX controlsFreeze, blackout or activate testpatterns on video engineRecall video presets (video settings, fixture positions and more)*See also P3 System Controller Capacity Info Note on Support & Downloads page

MOTION CONTROLS

One universe of DMX, Art-Net, sACN or Kinesys K2*Compatible with Kinesys K2, Tait Navigator and othersControl fixture or group position on video canvasControl fixture or group rotation on video canvas*See also P3 System Controller Capacity Info Note on Support & Downloads page

P3 SIGNAL PROTOCOLSignal type: Gigabit EthernetProtocol : Proprietary Martin P3Hot pluggable: Yes, electrically isolated at all connectionsCable type: Ethernet, shielded, CAT 5e or betterCable length: Up to 100 m (328.1 ft.) between any 2 devices, extendable with Ethernet switchMaximum number of fixtures per line: 50, extendable with Ethernet switch

Tổng quan sản phẩm

FEATURES

Drives up to 2.080.000 pixels
Built-in scaler and mapper
DVI-D input up to 1920x1080
2x 3G-SDI input up to 1920x1080
Analog video input up to 1920x1080
Dedicated bi-level and tri-level sync input for genlock
Built-in GUI (Graphical User Interface) including easy setup wizards
Real time visualization of the video mapping within the GUI (Graphical User interface)
Most user-friendly LED Video processor on the market
Compatible with all Martin Creative LED products and P3-enabled MAC moving heads
Integration with lighting controls (DMX, Art-Net & sACN) and automation systems
All connected products report status and problems back to the controller for easy monitoring and maintenance
Showfiles compatible with all products within the P3 System Controller family (including the P3-PC offline editor)
Connected fixtures can cross-fade or toggle in real-time between video-mapping and DMX (pixel-mapping) control

Thông số kỹ thuật

SPECIFICATIONS

PHYSICALWidth: 482 mm (19.0 in.)Height: 90 mm (3.5 in.) rackmount 2UDepth: 508 mm (20.0 in.)Weight: 9.0 kg (19.8 lbs.)

CONTROL/USER INTERFACEUser interface : SXGA (1280 x 1024) or better monitor (VGA, DVI, HDMI or DP), USB keyboard, USB mouseDevice status: Status indicator LEDs

DVI VIDEO INPUT
Supports all resolutions up to 1920x1080
Supports both RGB and YCbCr, progressive scan only

COMPONENT VIDEO INPUT
Via DVI-I breakout cable (not included)
Supports all resolutions up to 1920x1080
Supports progressive and interlaced scan
10-bit color sampling
Supports composite NTSC/PAL/Secam, S-Video (Y/C) and component YPbPr w/Sync-on-G (Y)
Supports tri-level sync

SDI VIDEO INPUT
2 x SD-SDI 525/60 (NTSC) or 625/50 (PAL) per SMPTE 259M
2 x HD-SDI 720p per SMPTE 296M or 1080i per SMPTE 292M
1 x dual-link HD-SDI per SMPTE 372M
2 x 3G-SDI per SMPTE 424M (compatible with level A and level B sync)

GENLOCK INPUTSupports bi-level and tri-level sync

VIDEO PROCESSINGController pixel processing capacity: 2,080,000 pixels (expandable by adding P3-300s)*Controller fixture capacity: 2000 fixtures (expandable by adding P3-300s)*Maximum workspace area: 2,073,600 pixelsMaximum active capture area: 2,073,600 pixelsSystem processing depth: 16 bits per color (48 bits per pixel)System latency, DVI: 2 framesSystem latency, SDI/component progressive: 2 framesSystem latency, SDI/component interlaced: 3 frames
Latency between first and last fixture: NoneScaling (global and mixed pixel pitch)De-interlacingGamma curve selection and adjustmentControl of brightness, contrast and low lightReal-time content remappingReal-time color temperature and color space controlReal-time preview of video input and mapping canvas*See also P3 System Controller Capacity Info Note on Support & Downloads page

DMX CONTROLS

One line of DMX input*Up to 64 universes of Art-Net and/or sACN input*Control of intensity and colorsControl of color temperatureMerge video input with DMX controls towards fixturesCross-fade or toggle between video and DMX controlsFreeze, blackout or activate testpatterns on video engineRecall video presets (video settings, fixture positions and more)*See also P3 System Controller Capacity Info Note on Support & Downloads page

MOTION CONTROLS

One universe of DMX, Art-Net, sACN or Kinesys K2*Compatible with Kinesys K2, Tait Navigator and othersControl fixture or group position on video canvasControl fixture or group rotation on video canvas*See also P3 System Controller Capacity Info Note on Support & Downloads page

P3 SIGNAL PROTOCOLSignal type: Gigabit EthernetProtocol : Proprietary Martin P3Hot pluggable: Yes, electrically isolated at all connectionsCable type: Ethernet, shielded, CAT 5e or betterCable length: Up to 100 m (328.1 ft.) between any 2 devices, extendable with Ethernet switchMaximum number of fixtures per line: 50, extendable with Ethernet switch
